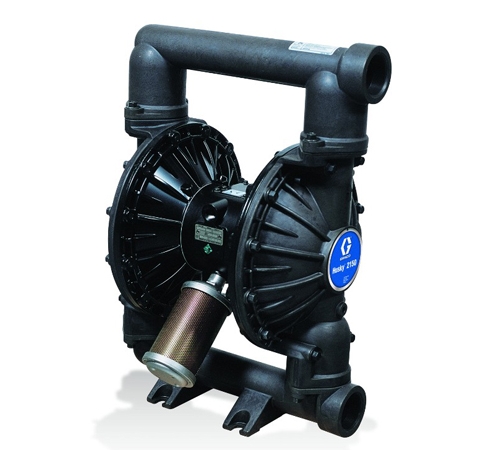

固瑞克(GRACO) HUSKY 2150 气动双隔膜泵-铝合金款

• 效能卓越，物超所值
• 流体压力可达120psi
• 专利的空气阀，可在线维修，并无需打开内腔
• 环氧涂层可抵御恶劣的工作环境

规格参数相关下载应用原料应用领域应用方案

技术规格
最大工作流体压力 .............................................................................. 120 psi (8.4 bar,0.84 MPa)
工作空气压力范围 .......................................................20-120 psi (1.4-8.4 bar，0.14-0.84 Mpa)
最大空气消耗量 .........................................................................................175 scfm (4.9 m3/min)
在70psi/60gpm情况下的空气消耗量 ..........................................................60 scfm (1.7 m3/min)
最大自由流量 ............................................................................................ 568 l/min (34.08 m3/h)
最大往复速度 ..................................................................................................................145 cpm
每往复流量 .......................................................................................................1.03 gal(3.90 liter)
最大自吸高度干抽 DF3666 ....................................................................................... 20 ft.(6.1 m)
根据阀座，球和隔膜的不同组合而变化
最大输送固体颗粒 ............................................................................................... 1/4 in.(6.3 mm)
在70psi和50cpm情况下的噪音级别 ................................................................................. 78 dBA
空气进口尺寸 ............................................................................................................. 1/2 in.npt(f)
流体进出口尺寸铝，不锈钢和铸铁 ............................................................................2 in.npt(f)
重量铝 ................................................................................................................. 58 lbs.(26.3 kg)
不锈钢 ....................................................................................................... 127 lbs.(57.6 kg)
铸铁 .............................................................................................................. 130 lbs.(59 kg)
尺寸铝,不锈钢和铸铁 .......................................................... 17.5 in. W x 23.0 in. H* x 12.5 in. D
(443.2 mm W x 584.2 mm H x 317.5 mm D)
安装孔布局 ............................................................................. 6 in. (152.4 mm)x 6 in. (152.4 mm)
操作手册铝,不锈钢和铸铁 .........................................................................................308-368
