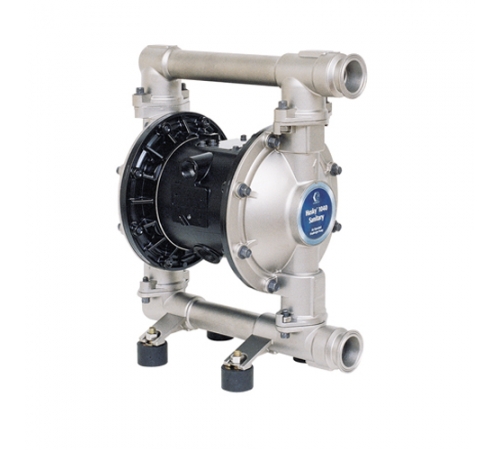

固瑞克HUSKY1040气动双隔膜泵

HUSKY1040气动双隔膜泵

规格参数相关下载应用原料应用领域应用方案

安全可靠,应用广泛

•体积小巧,流量高,可达151lpm

•液体压力可达8.4bar

•核心部位有防腐蚀涂层

•可靠的空气换向阀

技术规格

最大工作流体压力 .............................................................................. 120 psi (8.4 bar,0.84 MPa)

最大自由流量 .......................................................................................40gpm (151lpm)

最大往复速度 .......................................................................................276cpm

每往复流量 .......................................................................................................0.15 gal(0.57 liter)

最大输送固体颗粒 ............................................................................................... 1/8 in.(3.2 mm)

最大自吸高度干抽湿抽...................................................................................... 18 ft (5.48 m)

工作空气压力范围 .......................................................20-120 psi (1.4-8.4 bar，0.14-0.84 Mpa)

在70psi和50cpm情况下的噪音级别 ................................................................................. 76 dBA

空气进口尺寸 ................................................................................................................. 1/2 npt(f)

流体进出口尺寸铝和不锈钢 .................................................................... 1 in.npt(f) 或 1 in bspt

重量铝 .................................................................................................... 18 lbs.(8.2 kg)

不锈钢................................................................................................. 33 lbs.(15 kg)
